3D printed robot claw

---

3D printed mechanical claw, custom designed for a robotics competition in 2022-2023. The claw itself was not modeled by me, but downloaded and edited to fit our custom design. Parts designed from scratch include the custom gear attachment for the servo fitting, and the adjustable connectors between the claw and gears.

The first time it was assembled, December 12 2022

Functional, though not the best looking

Timelapse generated by Fusion 360 of the process

Spider-Man

---

in action!

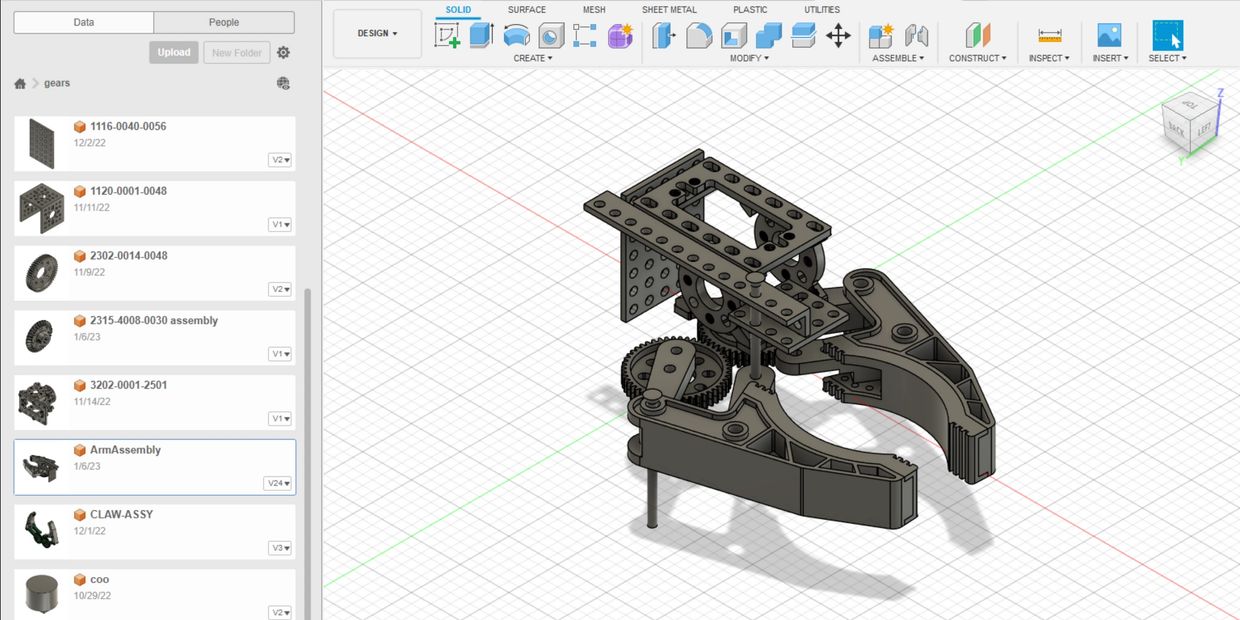

Screenshot of the full assembly in Fusion 360

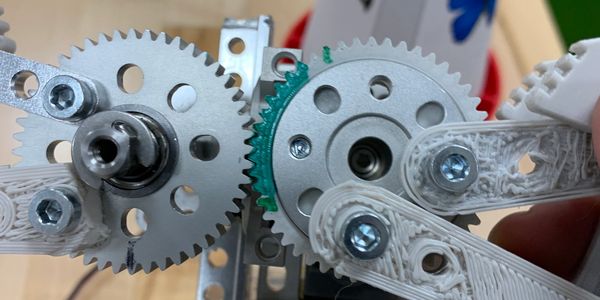

Peek at the inner workings

The parts that couldn't be 3D printed include the magnet, spring, rubber band and fishing line.
